VS30 2023-2024 Mercedes Sprinter 4×4 Van Transmission | Transfer Case Skid Plate Guard


Tax Included Pricing


Transmission & Transfer Case Skid Plate for VS30 2023-2024 AWD Mercedes Sprinter Vans

The skid plate is new and fits perfectly for AWD versions of Mercedes Sprinter manufactured between 2023 and 2024

Included Components

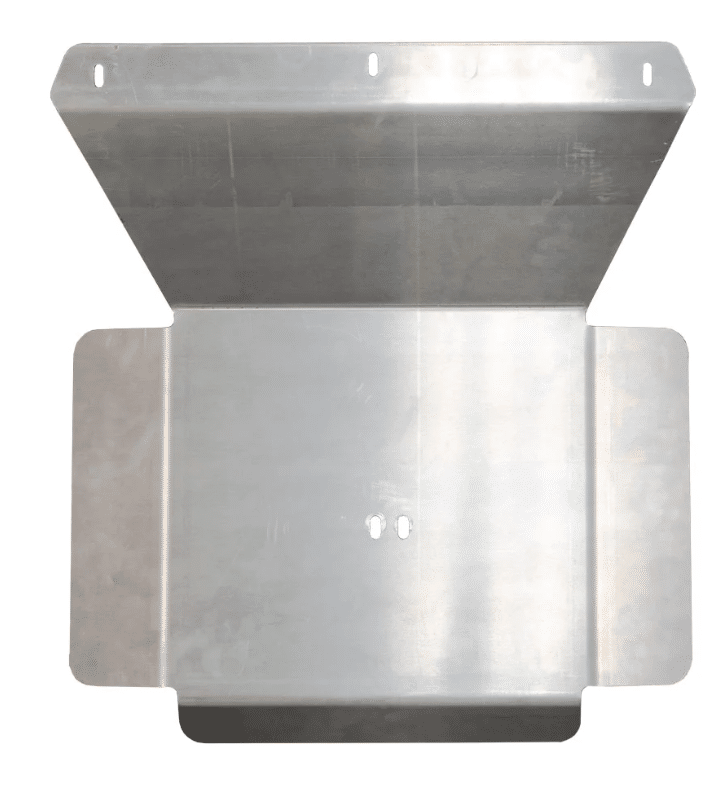

  • Transmission/Transfer Case Skid Plate – 1/4″ 5052 Aluminum
  • All necessary hardware

Explore with confidence in your AWD Sprinter with the Van Compass Transmission/Transfer Case skid plate. Designed to create a strong, smooth surface to slide over or bash. The skid plate protects your vital drivetrain components when off-road situations get a little out of hand. Made of 1/4″ thick 5052 Aluminum; this skid plate is designed to take the hardest of hits. The skid system is 100% bolt on with all the hardware provided. *This skid plate requires the use of our Engine Skid to properly attach to your van. For additional protection add the fuel tank skid plate!

With the release of the AWD Sprinter chassis in 2023, Mercedes changed the front subframe of the Sprinter and adapted a new powertrain to fit. This skid part number is specifically fit to the 2023+ AWD models with 4-cyl diesel and 9-speed auto transmission.

  • 2023+ Sprinter AWD Transmission and Transfer Case Skid Plate Installation Instructions:

Recommended Shop Labor Time: 1 Hour

Click Here for a NCV3 2007-2018 Mercedes Sprinter 2wd Van European Import Skid Plate Guard

Additional information

Weight 29 lbs
Dimensions 36 × 24 × 12 in
