Description

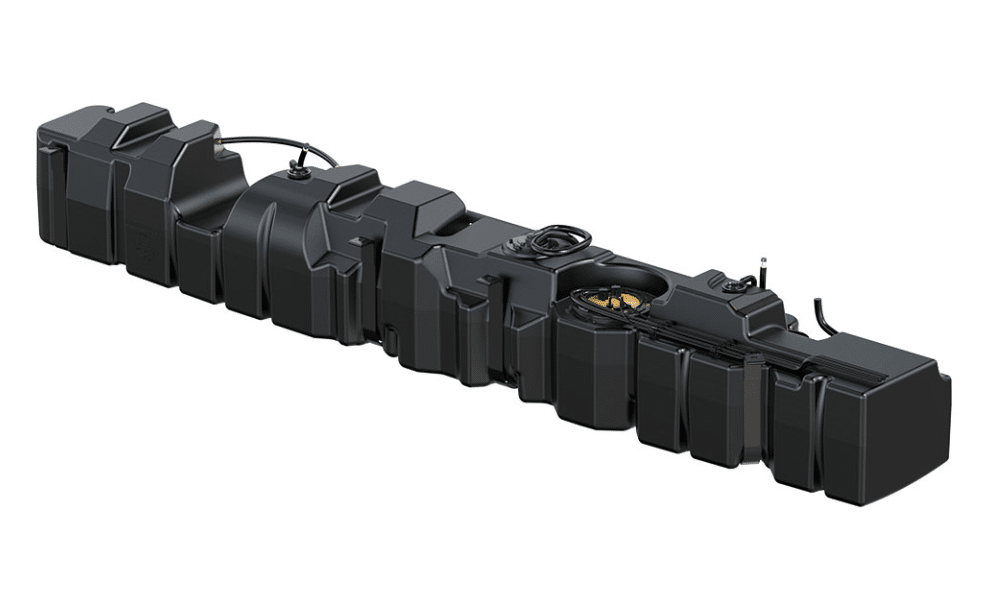

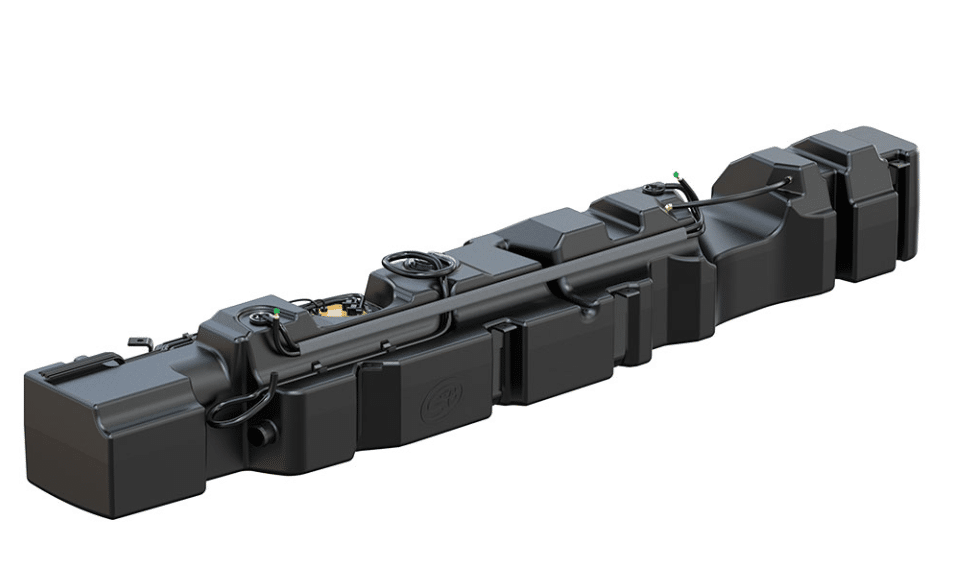

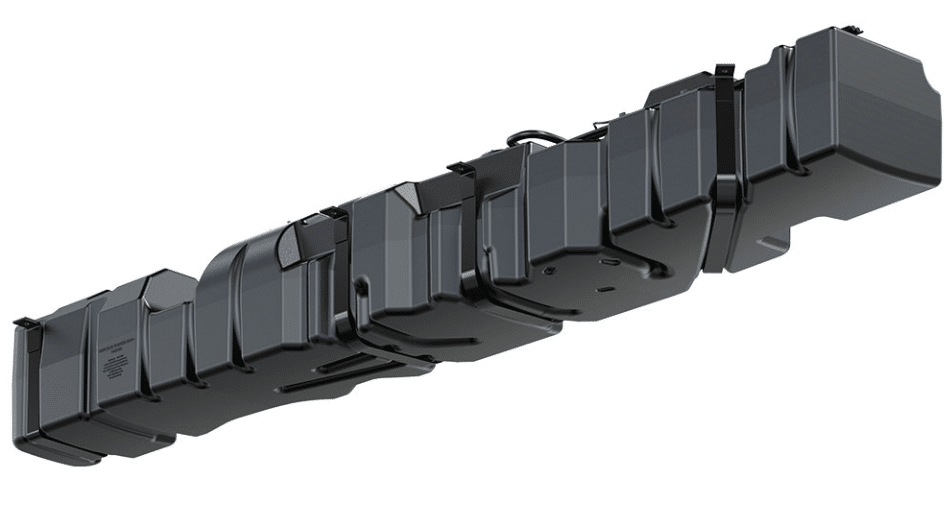

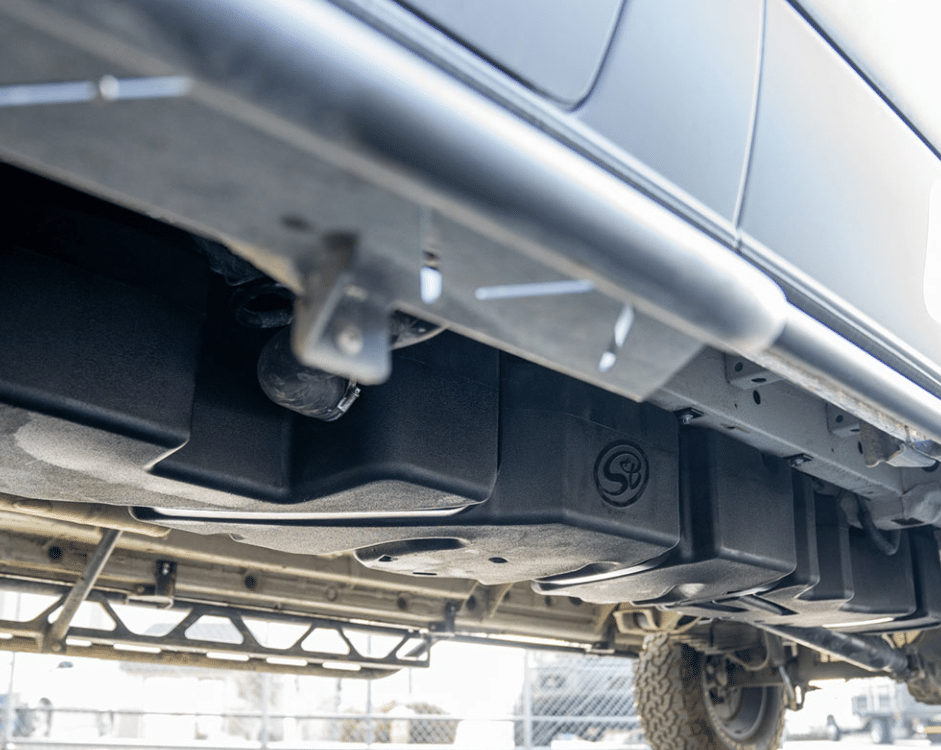

47 Gallon replacement Fuel Tank for 2019-2023 Mercedes Sprinter 144″ and 170″ Wheelbases
We are authorized S&B Dealer and Installer – Local Installation of Sprinter Fuel tanks available. Contact us for info.
This tank will NOT fit 170″ Crew Vans or 144″ Dual Rear Wheel Vans. part # 10-1027 will work for both.
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call S&B, send a message with your VIN, or consult with your installer to confirm if your van has J51.
STREET LEGAL IN ALL US STATESYES
TANK TYPEMIDSHIP
S&B CAPACITY (APPROXIMATE)47 GALLONS
OEM CAPACITY24 GALLONS
WEIGHT (DRY)45LBS
GROUND CLEARANCE COMPARE TO OE TANK1.5″
SUMPNO
DRAINNO
SENDING UNITOE
STRAPS INCLUDEDYES
DIMENSIONS98.28″ X 15.41″ X 14.17″
Note: Must be installed on vehicles by a Certified Mechanic. Preferably an ASE Master Tech like we have at our repair shop.
| 2019 | MERCEDES | SPRINTER 2500 144″ & 170″ WHEELBASE (EXCLUDING 170″ CREW VANS) | 3.0L, 2.0L DIESEL |
| 2019 | MERCEDES | SPRINTER 3500 144″ & 170″ WHEELBASE (EXCLUDING 170″ CREW VANS) | 3.0L, 2.0L DIESEL |
| 2020 | MERCEDES | SPRINTER 2500 144″ & 170″ WHEELBASE (EXCLUDING 170″ CREW VANS) | 3.0L, 2.0L DIESEL |
| 2020 | MERCEDES | SPRINTER 3500 144″ & 170″ WHEELBASE (EXCLUDING 170″ CREW VANS) | 3.0L, 2.0L DIESEL |
| 2021 | MERCEDES | SPRINTER 2500 144″ & 170″ WHEELBASE (EXCLUDING 170″ CREW VANS) | 3.0L, 2.0L DIESEL |
| 2021 | MERCEDES | SPRINTER 3500 144″ & 170″ WHEELBASE (EXCLUDING 170″ CREW VANS) | 3.0L, 2.0L DIESEL |
| 2022 | MERCEDES | SPRINTER 2500 144″ & 170″ WHEELBASE (EXCLUDING 170″ CREW VANS) | 3.0L, 2.0L DIESEL |
| 2022 | MERCEDES | SPRINTER 3500 144″ & 170″ WHEELBASE (EXCLUDING 170″ CREW VANS) | 3.0L, 2.0L DIESEL |
| 2020 | WINNEBAGO | NAVION | 3.0L, DIESEL |
| 2021 | WINNEBAGO | NAVION | 3.0L, DIESEL |
| 2022 | WINNEBAGO | NAVION | 3.0L, DIESEL |
| 2020 | WINNEBAGO | VIEW | 3.0L, DIESEL |
| 2021 | WINNEBAGO | VIEW | 3.0L, DIESEL |
| 2022 | WINNEBAGO | VIEW | 3.0L, DIESEL |
| 2020 | STORYTELLER | CLASSIC MODE 4X4 | 3.0L, DIESEL |
| 2021 | STORYTELLER | CLASSIC MODE 4X4 | 3.0L, DIESEL |
| 2022 | STORYTELLER | CLASSIC MODE 4X4 | 3.0L, DIESEL |
| 2021 | STORYTELLER | STEALTH MODE 4X4 | 3.0L, DIESEL |
| 2022 | STORYTELLER | STEALTH MODE 4X4 | 3.0L, DIESEL |
| 2020 | STORYTELLER | BEAST MODE 4X4 | 3.0L, DIESEL |
| 2021 | STORYTELLER | BEAST MODE 4X4 | 3.0L, DIESEL |
| 2022 | STORYTELLER | BEAST MODE 4X4 | 3.0L, DIESEL |
| 2022 | PLEASURE-WAY | REKON 4X4 | 3.0L, DIESEL |
Additional information
| Weight | 80 lbs |
|---|---|
| Dimensions | 60 × 36 × 24 in |
