3500 | DRW Dually | AWD / 4×4 Roadmaster Anti Sway Bar Kit for 2024-2025 Sprinter Van
This product is compatible with all 3500 Sprinter Vans made between 2024-2025
his rear sway bar kit is designed to fit all 2024-2025 Mercedes Sprinter 3500 models.
Product Overview:

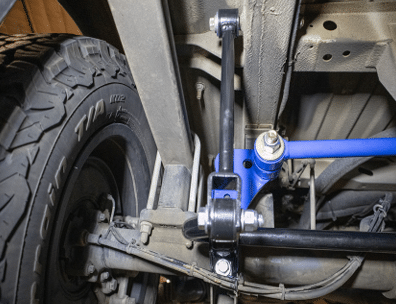

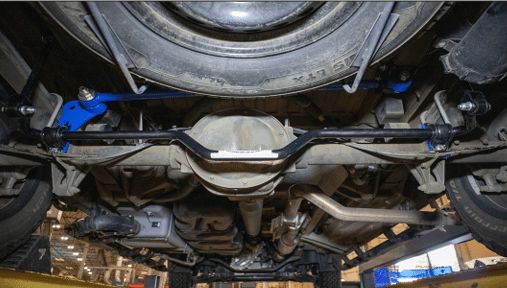

Our innovative rear sway bar kit redefines sway control by utilizing a mid-frame mounted end link system. This unique design significantly enhances handling, especially when combined with our other suspension upgrades. The vehicle tracks more smoothly on the road, and the rear follows the front more precisely when navigating turns. Additionally, body roll is greatly reduced when cornering or entering/exiting driveways.
Ideal for Heavy-Duty Applications:
This auxiliary sway bar is specifically engineered for Sprinter vans that operate at or near maximum Gross Vehicle Weight (GVW). It provides superior weight distribution and sway control, making it an excellent choice for heavily loaded vehicles.

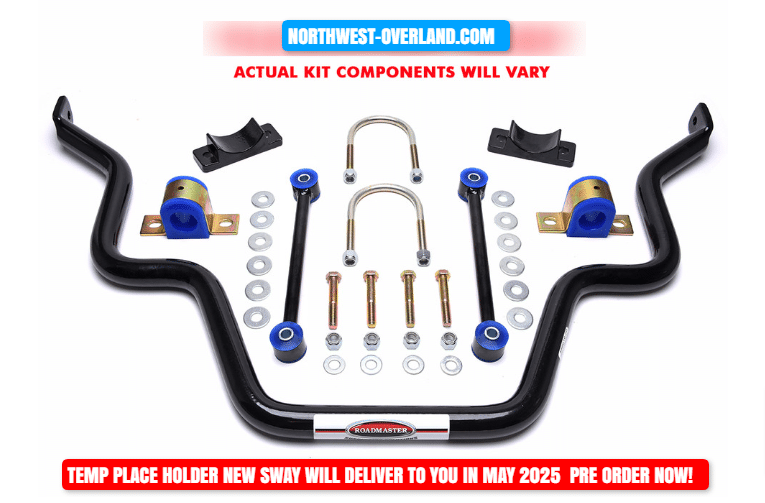

Kit Components:
- 1 ½” sway bar
- Axle mounting brackets
- End links with mounting brackets
- Polyurethane bushings
Installation Details:
- Requires drilling four holes in non-critical areas
- Installation time: approximately 3 hours
Additional Fitment Notes:
- This kit can be used as a replacement for an existing sway bar or for first-time installation.
- Factory replacement 1 1/8” diameter sway bar version available for VS30 4WD models with a factory-installed lift kit only.
| Year | 2018-2024 and 2025 |
|---|
Included

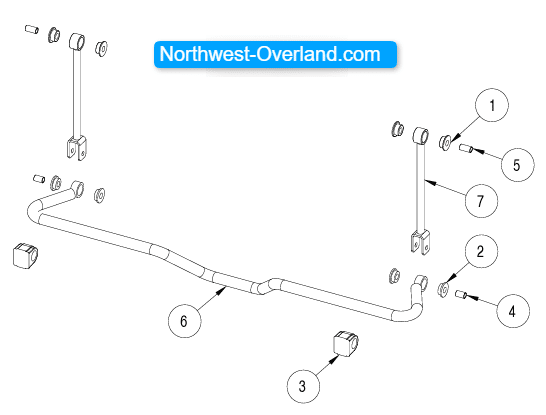

Parts List
| Item | Quantity | Description | Part Number |
|---|---|---|---|
| 1 | 4 | Bushing | 205223-00 |
| 2 | 4 | Bushing | 205227-00 |
| 3 | 2 | Bushing | 205255-10 |
| 4 | 2 | Bushing Sleeve | 205507-00 |
| 5 | 2 | Bushing Sleeve | 205516-00 |
| 6 | 1 | Anti-Sway Bar | 580227-00 |
| 7 | 2 | End Link | B1088 |
| 8 | 1 | Loctite | 200544-00 |
| 9 | 1 | Aqualube | 400011-30 |
Factory replacement rear sway bar 1 1/8 diameter. Fits 4wd VS30 only models with factory-installed lift kit only.
1209-154 Mercedes Sprinter 2024 3500 AWD Roadmaster Sway Bar Installation Instructions
Additional information
| Weight | 29 lbs |
|---|---|
| Dimensions | 44 × 20 × 3 in |
