Description
CR Laurence FW297R 2015-2023 Ford Transit OEM Design ‘All-Glass’ Look Passenger Side Forward Window for 148″ Extended Length Body Medium and High Top Vans
We Install Windows in the Portland Oregon Area Call us!

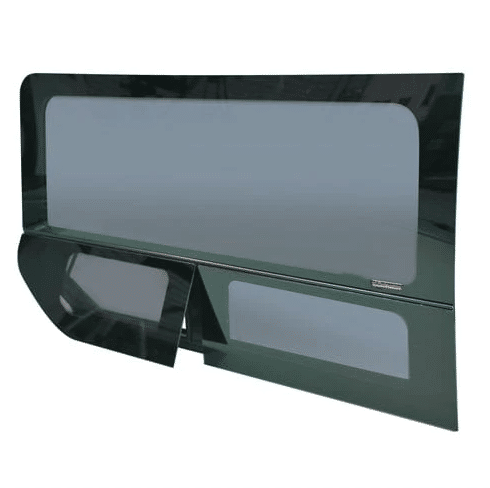

Looking for Ford Transit vented rear quarter windows for a Ford Transit 148″ EL van? The CRL Ford Transit Passenger Side Rear Quarter Vented Window (FW297R) fits the factory window cutouts, eliminating the time-consuming effort of laying out where the window will be installed, and it also matches the tint and styling of the factory glass. The best feature is the crank-out bottom panels, giving you great ventilation and detachable screens to keep out bugs.
KEY FEATURES: CRL FORD TRANSIT 148″ EL PASSENGER SIDE REAR QUARTER VENTED WINDOW (FW297R)
This CRL Ford Transit 148″ EL Passenger Side Rear Quarter Vented Window (FW297R):
- Fits 2015+ Ford Transit 148″ EL models (including Ford Transit 350 HD/350 HD XLT extended body vans). Does not fit 130″WB or 148″WB regular-body Transit vans.
- Has 28% dark gray tint
- Has two crank-out bottom opening panels with detachable screens
- Uses tempered glass for maximum safety and strength
- Is tested to ANSI Z26.1 and FMVSS 205 safety standards
- Uses factory stampings for cut lines
- Is a clamp-in window, no primer or adhesive required
- Is Made in the USA by CR Laurence.
When mounting these windows in your Ford Transit van:
- If you can, cut the openings with a center-blade shear, rather than a jigsaw – this will cut an opening that may be less ragged, produce less debris, and produce less hammering on the sheet metal of the van.
- Make sure you paint the cut edges of the new window opening – if you skip this step, moisture can rust out the edges of the window mounting.
- IMPORTANT: these windows clamp in place – ensure you do not use power tools on the inner trim ring screws, use hand tools to tighten these.
NO SHIPPING CHARGES if you pick up your van windows at any of the 18 US van window warehouses.
Want to save on shipping? Large van windows can only ship via truck freight, so you pay shipping for the window and the pallet on which the window ships. Smaller windows can ship via UPS, so you’ll pay less shipping.

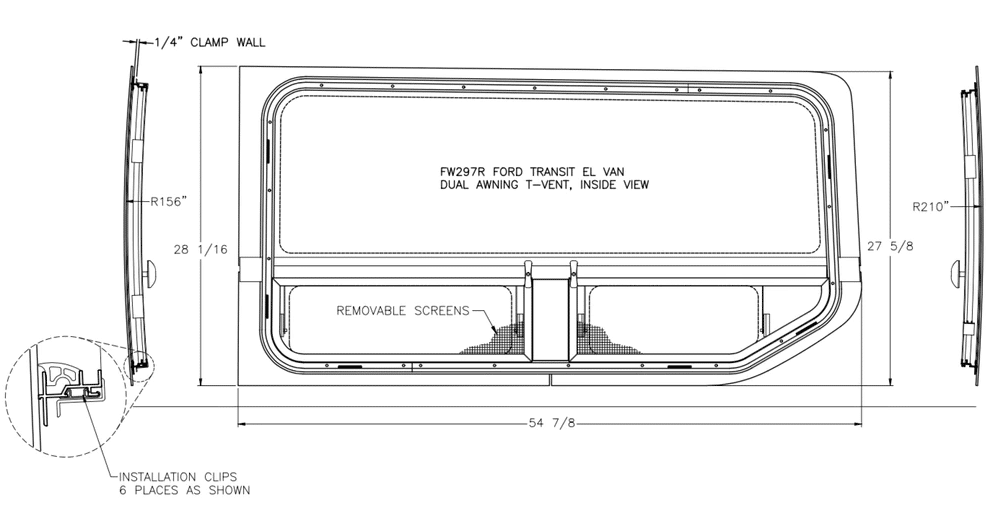

SPECIFICATIONS: CRL FORD TRANSIT 148″ EL PASSENGER SIDE REAR QUARTER VENTED WINDOW (FW297R)
| Height (in.): | 28.1″ |
| Width (in.): | 54.8″ |
| Weight (lbs.): | 35 |
| Tint: | 28% Dark Gray |
| Window Type: | Dual Vent with Detachable Screens (Clamp-in) |
| Fits: | 2015+ Ford Transit Cargo Van 148″ EL High Roof,
2015+ Ford Transit Cargo Van 148″ EL Medium Roof 2015+ Ford Transit 350 HD/350 HD XLT van models. |
|
|
Additional information
| Weight | 26 lbs |
|---|---|
| Dimensions | 60 × 40 × 20 in |
