3M™ Thinsulate™ Insulation Kit for 2015-2025 Ford Transit 148″ | 148″-Ext Wheelbase High Roof
Need a Thinsulate insulation kit for your Transit camper van conversion? This pre-cut 3M™ Thinsulate™ Van Insulation Kit for Ford Transit 148″WB High Roof gives you all the insulation you’ll need for your Ford Transit camper van in one easy, ready-to-install bundle. This Thinsulate van insulation has been precisely cut to conform to the interior cavities in your Ford Transit cargo van.

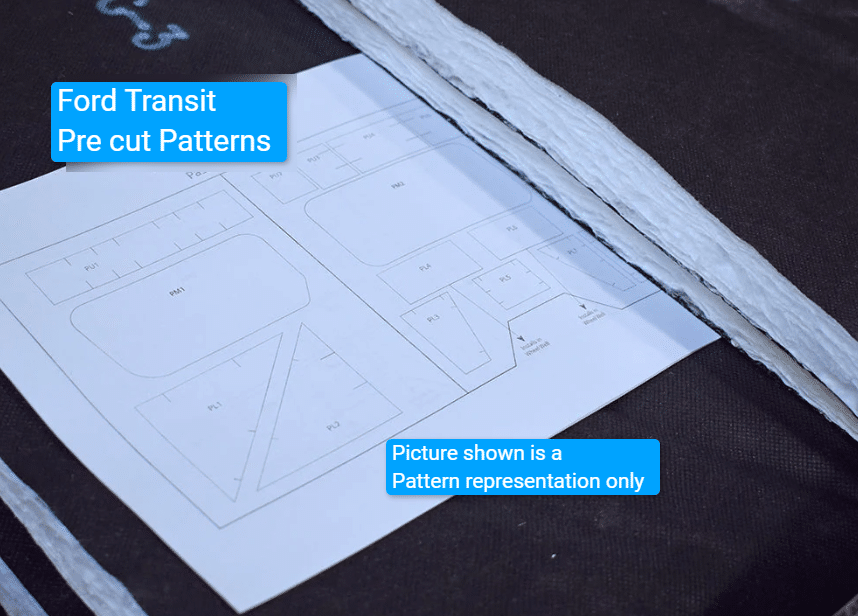

Using this pre-cut van insulation kit will save you lots of time trying to cut Thinsulate insulation to size to fit all the irregular nooks and crannies inside your Transit van interior. The insulation kit comes with a diagram that shows the correct location for all the Transit camper van insulation pieces.

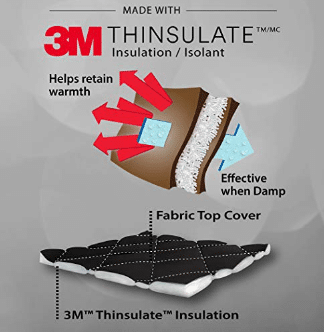

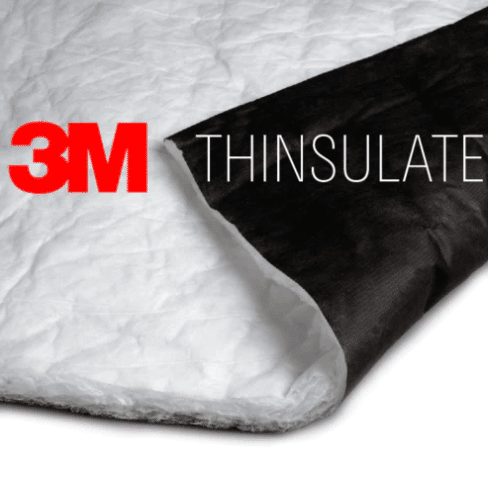

3M™ Thinsulate™ is a unique non-woven acoustic absorber composed of polyester and polypropylene fibers. The polypropylene fibers are extremely fine, producing a high-energy absorption characteristic with low weight. The polyester fibers are added to strengthen the web, while the scrim protects and contains the fibers. The fine microfibers absorb high frequency noise, and the thicker fibers provide recovery and loft. It is compressible, lightweight, and conformable.
Key Features: 3M™ Thinsulate™ Van Insulation Kit for Ford Transit 148″WB High Roof
- Made to fit Ford Transit cargo vans, including the high-roof Ford Transit 148″WB cargo van models.
- Delivers more acoustic absorption per unit weight vs. competitive products
- Extremely lightweight, helps your van conversion build stay light and efficient
- Non-woven sound-absorbing fibers create a quieter vehicle environment
- Hydrophobic fibers resist moisture, mold and mildew
- Fibers are contained in a double black, double embossed scrim.
Note: This kit does not include insulation for the cab area of the van.
Specifications: 3M™ Thinsulate™ Van Insulation Kit for Ford Transit
| Fire Resistance | Certified to FMVSS 302 standard for fire-resistance |
| Roll Width | 60″ |

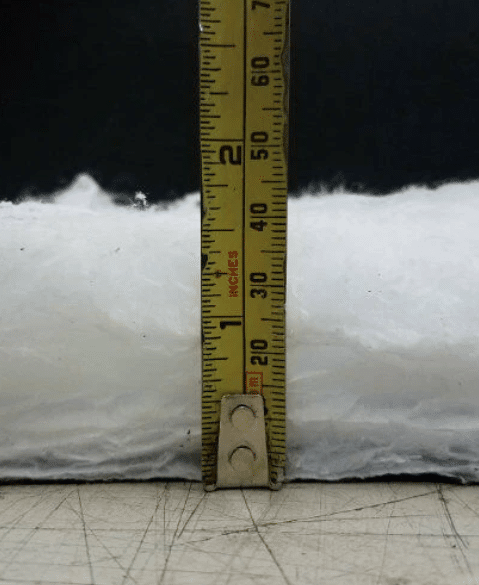

| Thickness | 44mm |
| Density | 16.1 kg/m3 |
| R-Value | 5.45 per inch (RSI 0.96) |
| Quiet | 3M™ Thinsulate™ has highly efficient acoustic
absorption, particularly in middle- to high-frequency ranges. |
| Light | Thinsulate acoustic insulation products are made from
lightweight polyester and polypropylene non-woven fibers. |
| Easy to Install | Lightweight and easy to handle compared to other insulation
materials. Can easily be die-cut, heat sealed, and thermally or sonically bonded to many other substrates. |
| Mold, Mildew and Moisture Resistant | 3M™ Thinsulate™ has exceptional moisture resistance, no need to install an additional waterproof layer. 3M™ Thinsulate™ is also resistant to mildew growth, minimizing the risk of offensive odors. |
Additional information
| Weight | 10 lbs |
|---|---|
| Dimensions | 48 × 18 × 18 in |
| Transit Type | 148" Standard Wheel Base, 148" Extended Wheel Base |
