Model 125D Or 125G Diesel | Gas Ultra-Compact Hydronic Heating for 2015-2023 Ford Transit Vans
Looking for Installation of Aqua-hot products? We are an Authorized Certified Aqua-Hot Installer
For warranty this product required to be installed by a Certified Aqua hot Installer

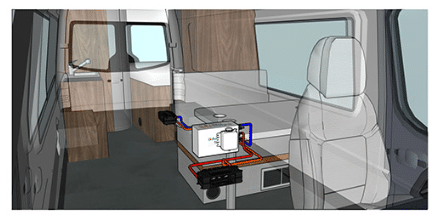

The compact 2015-2023 Ford Transit Van Aqua-Hot 125 can be installed inside/under cabinetry or furniture. This highly efficient system operates as the van’s heating system and continuous hot water supply. As many as 3 heat exchangers (black units in photo) can be placed throughout the van to bring heat where needed. The burner is installed on the underside of the van chassis for noise reduction and exhaust.
For more info and the brochure Click Here
- All in One Unit – Fast and easy installation, one unit provides heat and continuous hot water.
- High Altitude Ready – Adjusts O2 and fuel mix to optimize flame for altitudes up to 11,000ft. Will not soot up and does not require the same maintenance required on other systems.
- Great for Off-Grid – Uses the vans on board diesel fuel for all heating and hot water needs with the option to use the electric element when shore power is available.
- Continuous Hot Water – 110-120F at .8 gpm for kitchen and all water needs.
- Quiet – The combustion unit is installed outside the van with its own exhaust, while low decibel fans provide heat inside.
- Night Mode – Provides ample heat with further noise dampening.
- Dual Fuel – Either diesel via the van fuel tank or shore power electric.
- LCD Controller – Up to 3 independently controlled zones, intuitive controls -plus test and diagnostic tools.

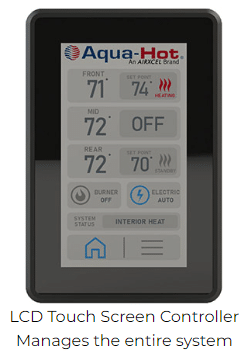

LCD Touch Screen Controller
Manages the entire system

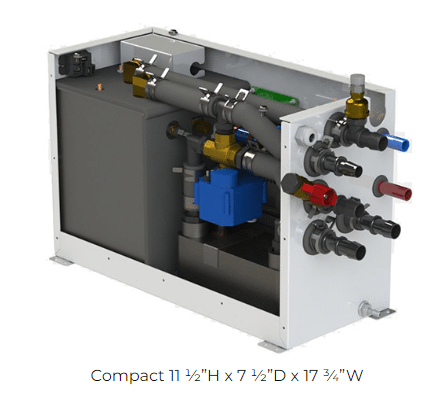

Compact 11 ½”H x 7 ½”D x 17 ¾”W

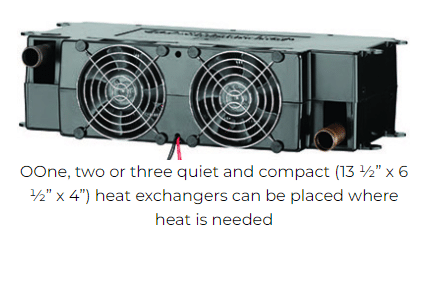

One, two or three quiet and compact (13 ½” x 6 ½” x 4”) heat exchangers can be placed where heat is needed
Additional information
| Weight | 50 lbs |
|---|---|
| Dimensions | 24 × 24 × 18 in |
