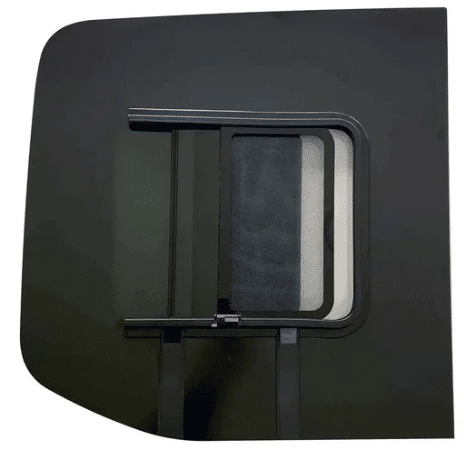

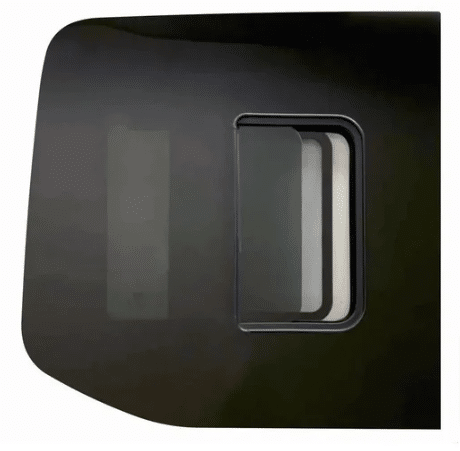

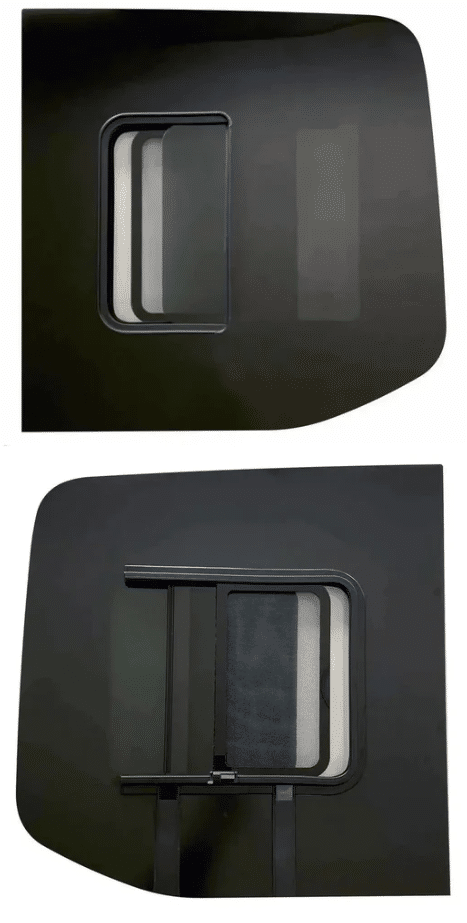

Vs30 2019-2024 Mercedes Sprinter Van Rear Sliding Window Cargo Door Driver Side Rear

Description

Upgrade your van with the premium VWD Mercedes Sprinter Van Slider Window 2019+ Driver Side Rear Cargo Door



(DTSPCR024-INT), designed to elevate your driving experience. Featuring Pure Grey Solar Privacy Glass, this window offers a stylish and fresh look, delivering a more realistic vision from the interior. With excellent thermal performance and a 15% UV filter rating, you’ll enjoy enhanced comfort during your journeys.

Looking for the Passenger Side of this window click here

The VWD Slider Window’s sliding portion is strategically oriented to provide optimal ventilation, while its tight seal ensures exceptional weather resistance, even in stormy conditions. The low-profile aluminum trim handle adds convenience and aesthetics, making opening and closing a breeze.

Enjoy hassle-free operation with the independently sliding screen, allowing you to switch between screened and un-screened openings effortlessly. Constructed with durability in mind, the black acrylic frame and aluminum screen mesh offer higher resistance to tears and fraying, ensuring longevity.

Security is paramount, and VWD has taken steps to ensure peace of mind. The innovative latch design secures the window down to the tracks, preventing any unwanted sliding from the outside. Rest assured that your van and belongings are safe and protected.

In Summary

With the VWD Mercedes Sprinter Van Slider Window 2019+ Passenger Side Rear Cargo Door (DTSPCR024-INT), you get style, functionality, and security in one sophisticated package. Elevate your van’s look and performance today!

Key Features: VWD Mercedes Sprinter Van Slider Window 2019+ Driver Side Rear Cargo Door (DTSPCR024-INT)

• Single-pane glass automotive window with sliding panel and independent sliding screen.
• Designed to fit 2007-2018 Mercedes Sprinter 144” WB, 170”WB and 170”WB extended-body (High Roof / Low Roof Models).
• Solar Privacy Glass
• Excellent thermal performance with a 15% UV filter rating.
• Manufactured with tempered safety glass that meets or exceeds DOT/SAE standards.
• 1-year warranty.
• Direct-Fit (High Roof / Low Roof Models)
• Driver Side Rear Cargo Door
• Color = Solar Privacy Glass
• UV Rating = 15%
• Installation Type = Urethane Bonded
• Mfg Country = Turkey
• Mfg Warranty = 1 Year
• Measurements
• Overall : 777mm x 777mm (30.59″ x 30.59″)
• Slider Opening:    368mm x 165mm  (14-1/2″ x 6-1/2″)
• Flowable Opening:
• The flowable opening is based on the glass of the slider within the opening

Specifications: VWD Mercedes Sprinter Van Slider Window 2019+ Driver Side Rear Cargo Door (DTSPCR024-INT)

Manufacturer	Van Windows Direct
Placement on Van	Driver Side Rear Cargo Door
MPN	DTSPCR024-INT
Dimensions (L x W x H)	36 x 4 x 36 in
Billable Weight	50 lbs
Installation Type	Urethane Bonded



What’s need to install it?

This window is installed with Urethane Adhesive, you will need a primer base, and we recommend edge molding for the cut edge (see our Campervan HQ blog post on adding bond-in windows).

Click Here for the Glass Plan Schematic

VWD Sprinter Slider Window Comparison Table

Part #	Window Position	Wheel Base	Slider Opening	Airflow Opening
DTSPCR007-INT	Driver Side Forward	ALL	22-14″W x 22-1/8″H	15″W x 19-1/2″H
DTSPCR008-INT	Driver Side Middle	170/170 EXT
DTSPCR009-INT	Driver Side Rear Quarter	170/170 EXT
DTSPCR022-INT	Driver Side Rear Quarter	144
DTSPCR025-INT	Driver Side Rear Cargo Door	ALL
DTSPCR010-INT	Passenger Side Sliding Door	ALL	22-14″W x 22-1/8″H	15″W x 19-1/2″H
DTSPCR011-INT	Passenger Side Middle	170/170 EXT
DTSPCR012-INT	Passenger Side Rear Quarter	170/170EXT
DTSPCR023-INT	Passenger Side Rear Quarter	144
DTSPCR024-INT	Driver Side Rear Cargo Door (2019+)	ALL
DTSPCR026-INT	Driver Side Rear Cargo Door (’07-’18 only)	ALL
DTSPCRO27	Passenger Side Rear Cargo Door ( ’07-’18 only)	ALL
