Description

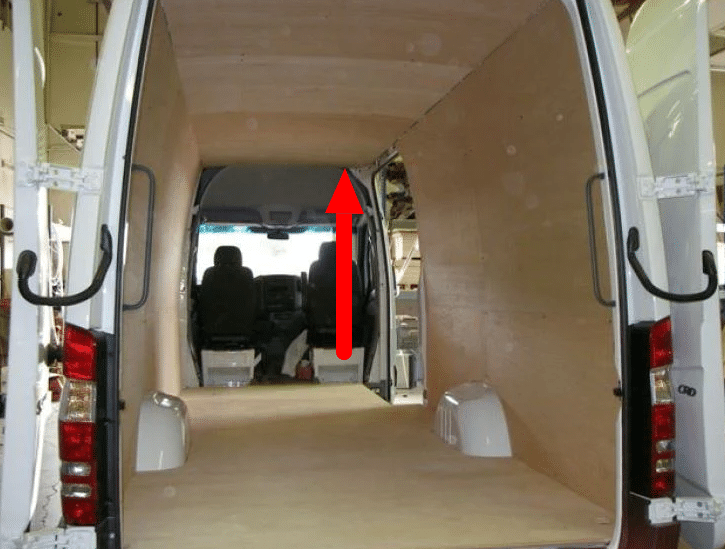

Enhance your Sprinter van’s interior with this precision-fit ceiling liner kit,
designed for 2007-2025 – 170″WB standard body cargo vans.
Crafted from 1/4″ white birch plywood, this ceiling panel kit offers a seamless, consistent finish that not only elevates the look of your van but also helps reduce road noise and maintain interior temperature. Panels mount directly to the ceiling ribs with self-drilling screws for a secure and easy installation.
-
Consistent interior finish
-
Noise reduction
-
Temperature control
-
High-quality 1/4″ White Birch Plywood construction
-

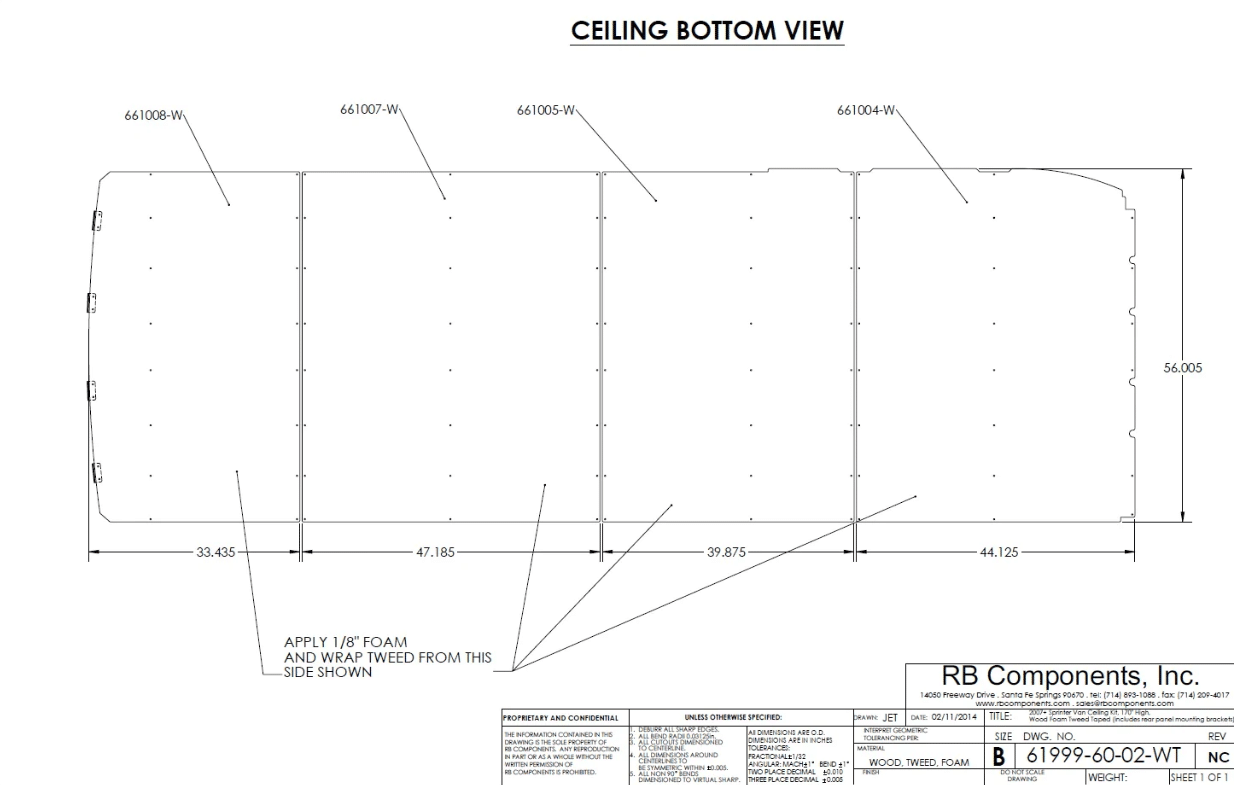

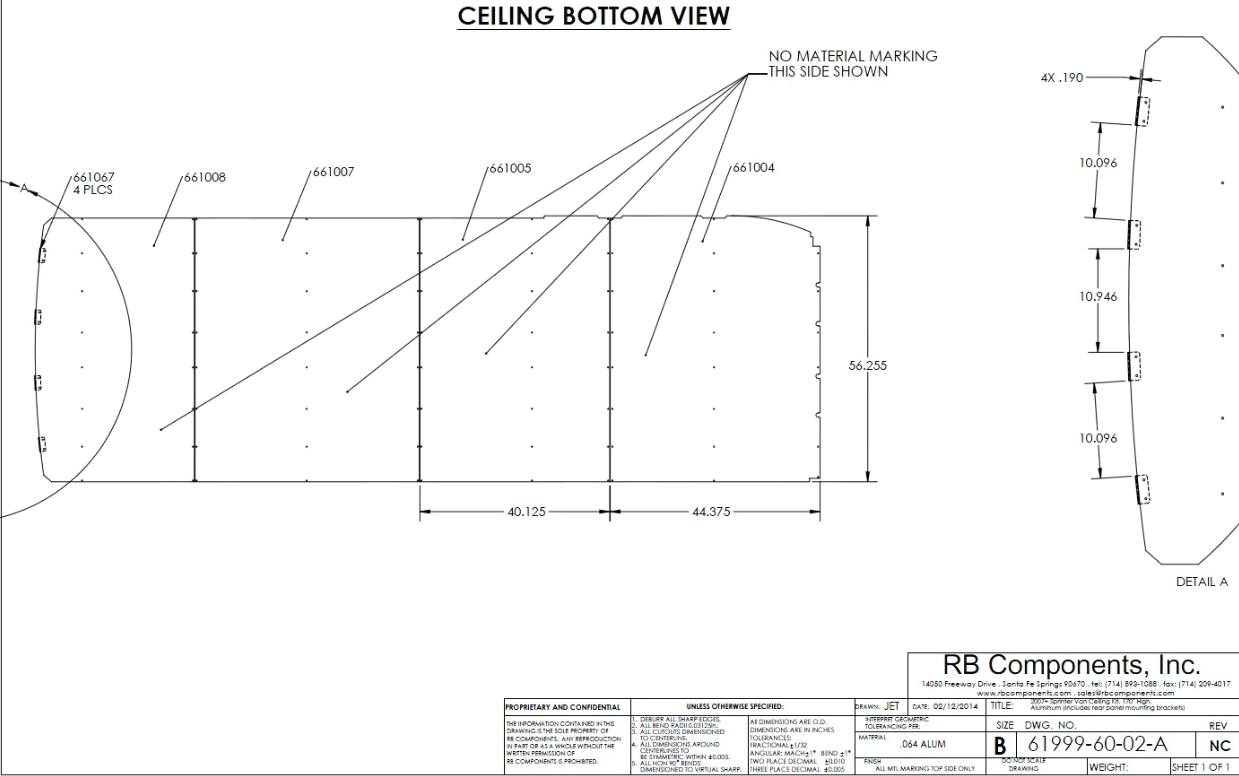

Includes layout guide and fasteners
-
Made in the U.S.A.
-
Motor freight shipping required—contact us for a quote
Note: Lighting or ventilation provisions are not included. Wall and door panels are not part of this kit. Images shown are similar to the bare aluminum version; actual item may vary. Contact our sales department for more details.
Installation Notes:
-
Install ceiling liner panels before wall liner panels.
-
Remove the large black Styrofoam blocks (if present) behind the driver’s compartment headliner—they’re just friction-fit and can be pulled out from the bottom.
-
The rear panel attaches to the rear door frame header using four small metal angle brackets, which are then fastened to the panel.
-
Minor modification to the rear panel may be needed to fit around the OEM wiring harness on the driver’s side rear door frame. While we relocate the harness during our installations, you can alternatively cut a small notch in the rear panel to clear it.
-
The front panel is notched to clear the OEM headliner clips, but because these clips are too short to sandwich the panel between the headliner and ceiling rib, you may need to fabricate a simple angle bracket. This bracket attaches to the vertical part of the ceiling rib and allows the front panel to be securely fastened.
Additional information
| Weight | 55 lbs |
|---|---|
| Dimensions | 72 × 36 × 36 in |
| Van Year | 2007-2018, 2019-Present Day |
