NCV3 2007-2018 Mercedes Sprinter Van Pikavo RVF™ Fan System for the Rear Door


Tax Included Pricing


The Pikavo Rear Door Ventilation RVF™ FAN SYSTEM for your NCV3 2007-2018 Mercedes Sprinter Van

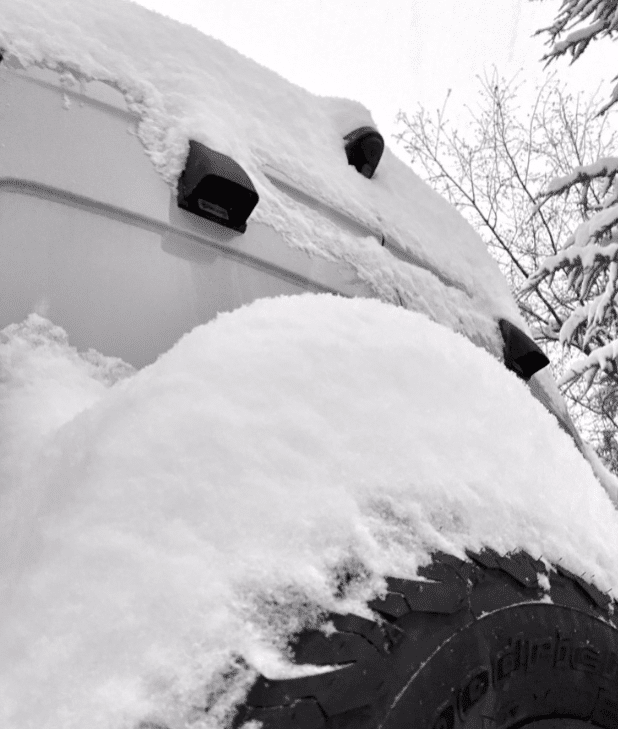

Rear Vent Fan System with speed control, on/off remote control and an auxiliary light. This design avoids puncturing your roof with a 14x14 hole. It maximizes solar real estate on roof and minimizes roof-rack complications. It also allows for ventilation when your roof is covered with snow.

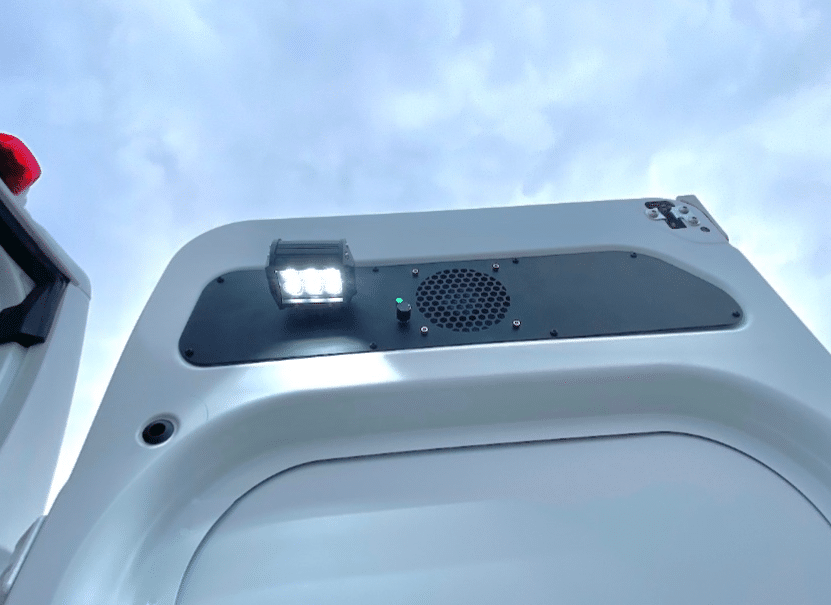

150CFM fan in each panel. 10W LED light.

Requires 2A max current and only needs a 3-3/8" hole in the upper section of the door.

We had people ask about the noise level of the fans vs the roof fans. Here's our data set:

Ambient van noise level with fridge and fridge fan running: 34db
Pair of RVFs running at half speed: 48db
Pair of RVF’s running at full speed: 72db
Espar heater on high, for reference, is 72-91db

Specify vehicle and door side with options menu.

PLEASE NOTE! The Transit unit will only fit the upper panel on a high roof van. You can use the generic on a low/med roof van if you don't have windows installed.

Also, we have has van upfitters install them on the side of a van to ventilate the kitchen area. The cowling should be installed at a 45º angle to deflect airflow from the front and from above (this requires the flapper to be installed at 45º, so let us know). Select the Generic Rectangle for this option.

Additional information

Weight 1 lbs
Dimensions 24 × 12 × 12 in
Door Side

Passenger Side Only, Driver Side Only, Both Driver & Passenger Side (Set)
