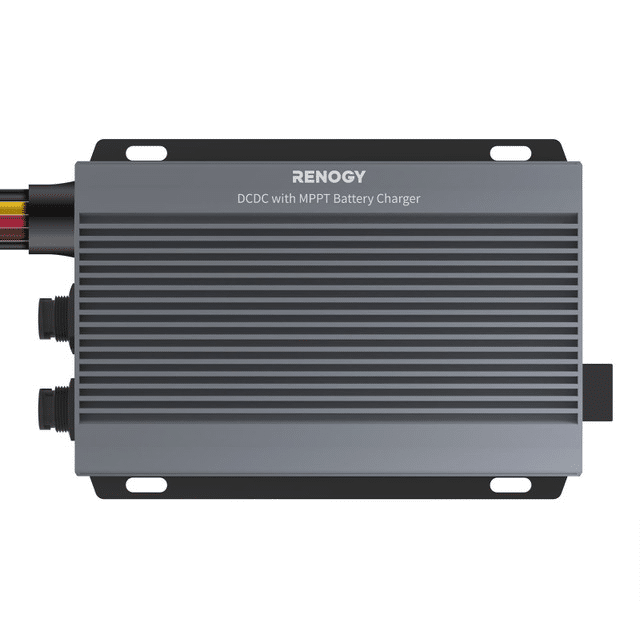

Conversion Van 12V/24V IP67 50A DC-DC Battery Charger with MPPT

$444.44

Tax Included Pricing

SKU: RBC2125DS-21W-US Categories: , , , Tags: , , ,
Renogy

Description

RENOGY 12V/24V IP67 50A DC-DC Battery Charger with MPPT – The Perfect Power Solution for Your Conversion Van Project



A dual charging solution with 12V/24V boost and buck logic.
-Compact & lightweight with IP67 waterproof rating.
-Auto-switching charging mode while prioritizing green power.
-CE, FCC, RoHS certified with comprehensive test reports.
-Bluetooth Energy Monitoring with wired CAN communication.
RENOGY 12V/24V IP67 50A DC-DC Battery Charger with MPPT

Package Includes

NOTE:

  • If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
  • More questions about your off-grid power system? Learn more from Renogy Learning Center!
IP67 50A DC-DC Battery Charger with MPPT

12V/24V IP67 50A DC-DC Battery Charger with MPPT

1 x



 Battery Temperature Sensor

1 x


Terminal Rings

4 x



 Install Screw(ST4*20mm)

1 x

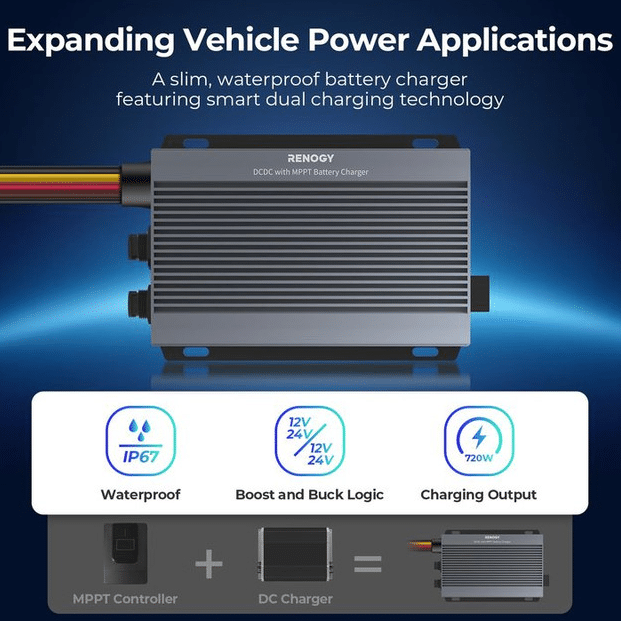

Introducing the RENOGY IP67 50A DC-DC Dual Input Battery Charger with MPPT – a sleek, waterproof dual charging solution designed for tight spaces. This charger features advanced boost and buck logic, making it compatible with 12V/24V-12V/24V voltage systems, expanding your DIY power possibilities. Renogy’s intelligent charging system prioritizes solar energy, efficiently charging your house battery while reducing strain on generators. It seamlessly integrates vehicle and solar power, automatically switching between modes based on sunlight conditions. With a powerful 50A current and 720W output, it maximizes energy use. In bright sunlight, it transitions to solar charging, and in low light, it shifts to generator power, ensuring uninterrupted energy flow. Enjoy an eco-friendly, space-saving charging experience that redefines sustainable power management.

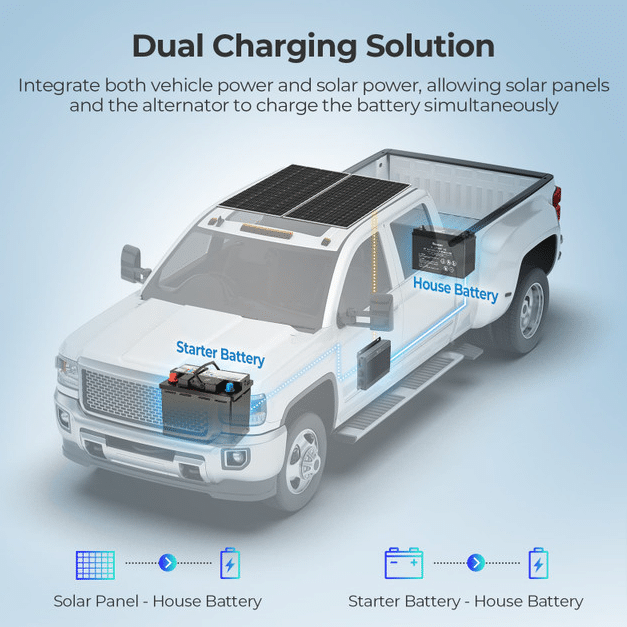

Intelligent Dual Charging Mode
Intelligently combining vehicle and solar power, with automatic mode adjustments based on sunlight intensity.

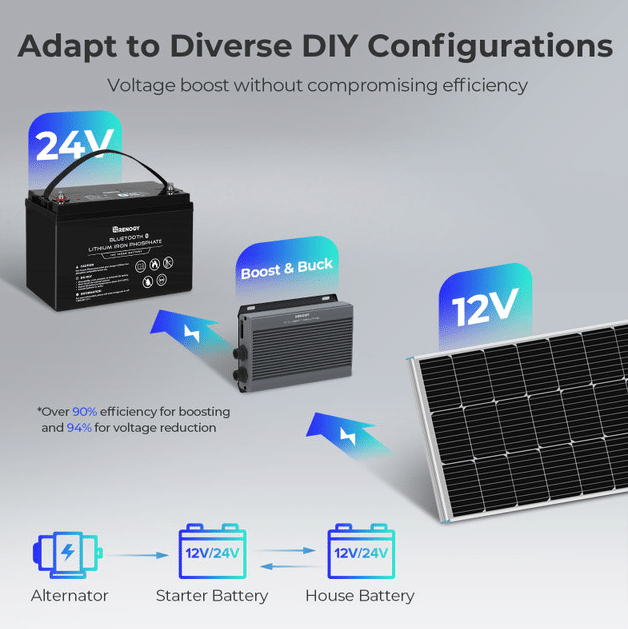

Versatile Voltage Adaptability
Light and Compact
Compatible with a Wider Range of Voltage
Expanding solar system DIY options for greater versatility.
Optimized Charging Efficiency
Enhanced Charging Safety
Optimized Charging Efficiency
720W charging power allows a 1.2kWh battery to be fully charged within 1.8 Hrs.
Robust and Resilient Design
Drop-Resistant
Sheet metal casing gives the charger a robust shell that withstands drops and impacts.
Temperature-Resistant
Withstand extreme temperatures from -31°F to 176°F and maintain full-load operation even at 131°F.

Water-Resistant Design
Featuring an all-around glue-filled construction, this charger offers full protection and exceptional waterproofing.

Superior Reliability with Optimal Efficiency
The charger not only meets the energy demands of your house battery but also delivers a steady trickle charge to the starter battery, ensuring your vehicle always starts reliably.

Basic Information

System Voltage: 12V/24V – 12V/24V

Solar Input Voltage: 50 VDC

Output Voltage: 9-32 VDC

Alternator Input: 9-32 VDC

Maximum Output Current Rating: 12V@50A ; 24V@25A

Output Power: 720W

Battery Types: AGM/SLD , GEL ,FLD ,LI,USER

Input Fuse Rating: 75A-100A

Output Fuse Rating: 75A-100A

MPPT Tracking Efficiency: 99%

MPPT Charging Efficiency: 97%

Conversion Efficiency: 94%

Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium) and 0mV / ℃ / 2V; no compensation (Lithium)

Idle Power Consumption: ＜100mA


GENERAL DATA

Model: RBC2125DS

Terminal Range: 8AWG-4AWG

Communication Protocol: Modbus ; RV-C

Operating Temperature Range: -31℉ to 176℉/-35℃ to 80℃

Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃

Humidity: 0%-95%, No Condensation

Maximum Operating Altitude: 3500m

Enclosure Rating: IP67

Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm

Weight: 4.10 lb / 1.86 kg

Certification: UL1741;CE;RoHS;FCC Part 15 class B

Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection

WARRANTY INFORMATION

Material and workmanship warranty: 3-year material warranty

Charge Controllers: DCCS Dual Input

Battery Chargers: DCCS Dual Input

opc:

Additional information

Weight 15 lbs
Dimensions 24 × 12 × 6 in
