Description
AO Electric Power Aluminum Running Boards Step for Mercedes 2022 | 2023 | 2024 Sprinter Vans
Now Available
The width of the step is 11.8” (30 cm)
The Length of the step is 23.6″ (60 cm Length) {90CM also available , contact us for info.}

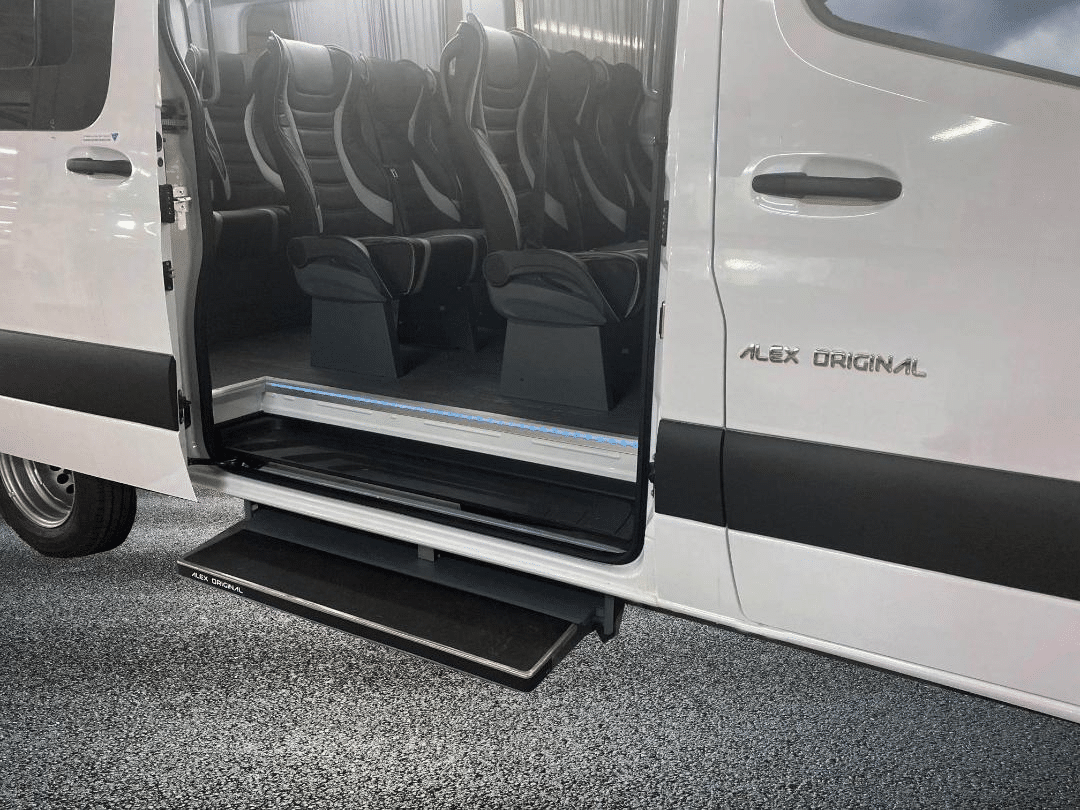

The step slides automatically in and out, when closing/opening the vehicle’s door.
Electrically Operated Front Right Door and “Sliding Door” make passenger’s life extremely comfortable and safe.
The driver can operate both doors from his seat.
This electrical system is the key to meet time schedules, where every minute counts.
Maintenance free-easy installation.
Alex Original aluminum electric step characterized by its modern design allowing com-
fortable and safe access to the vehicle. Minimum use of moving parts, no wheels and
bearings – low and easy maintenance. Step slides automatically out as the door opens
and retracts back when the door closes. With LED indication on the dashboard
1) LED flashing indicates the step is in movement
2) LED lightning fully when the step has opened fully to indicate safe entrance.
Alex Original
Electric Aluminum steps
Specifications:
Voltage: 12 Volt
Material: Aluminum
Corrosion resistant: High corrosion resistance
due to the use of
anodized aluminum.
Step-board: Aluminum anti slip board with
protective rubber edge
Obstacle detection : Yes
Optional:
• LED Step board lightning
• VSS Controller for automatic closing by driving
• Step board with R13 anti-slip rating DIN 51130
Technical Data:
Width: 450 mm to 900 mm
Thickness: 71 mm
Weight: 11 Kg (600 mm)
Maximum load: 300 Kg
Test load: 500 Kg
Certification: TÜV ECE-R107
Disclaimer:
This product is not designed or intended for use by individuals with disabilities or mobility impairments. It is an aftermarket accessory meant for general automotive convenience use only.
If you or someone using this vehicle has specific accessibility needs, please consult a professional mobility equipment installer or accessibility vehicle specialist. There may be additional options or modifications available to suit your requirements.
By purchasing this product, the customer acknowledges that they understand this kit may not function during a power failure and does not include medical-grade accessibility features. It is the responsibility of the installer and vehicle owner to assess its suitability for their specific use case.
Additional information
| Weight | 49 lbs |
|---|---|
| Dimensions | 80 × 9 × 9 in |
| Variations | NO Heat Boost on Sprinter & NO Rear A/C, NO Heat Boost on Sprinter & YES with Rear A/C, YES with Heat Boost on Sprinter & NO Rear A/C, and YES Heat Boost and YES Rear A/C on Sprinter Van |
