Description
STAGE 4 TOPO 2.0 SYSTEM – TRANSIT AWD (2020+ SINGLE REAR WHEEL) by VAN COMPASS
Stage 4 System Benefits:
- Aggressive 2″ taller stance accommodates larger tires for smoother terrain handling
- Improved approach, break-over, and departure angles
- VC-tuned Falcon 3.3 Adjustable rear shocks with 10 intuitive firmness settings
- Increased rear spring rate to combat sagging
- Enhanced cornering stability and reduced sway in windy conditions
- Better control over both large and small bumps
- Smoother handling on rough roads and broken pavement
- Increased resistance to bottoming out

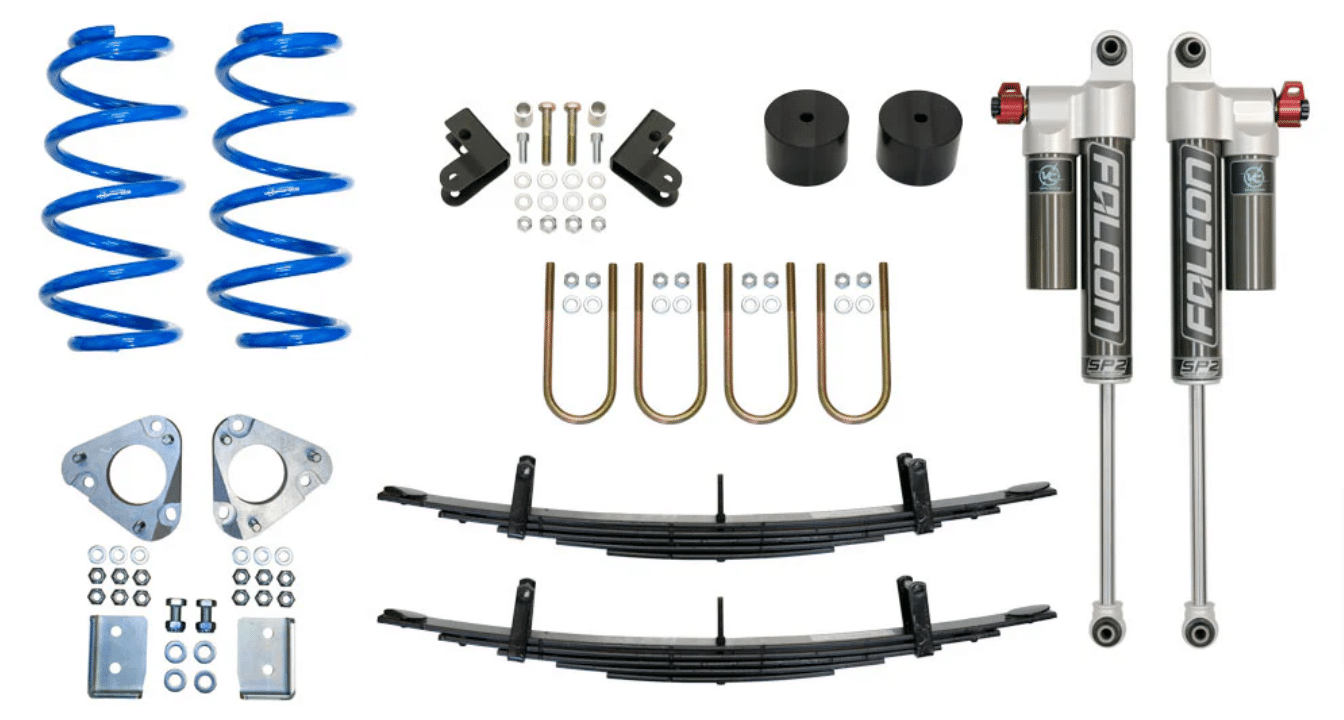

INCLUDED COMPONENTS

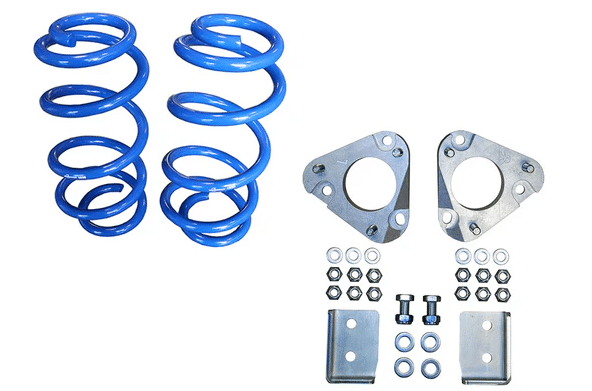

- Topo 2.0 Front Lift Kit

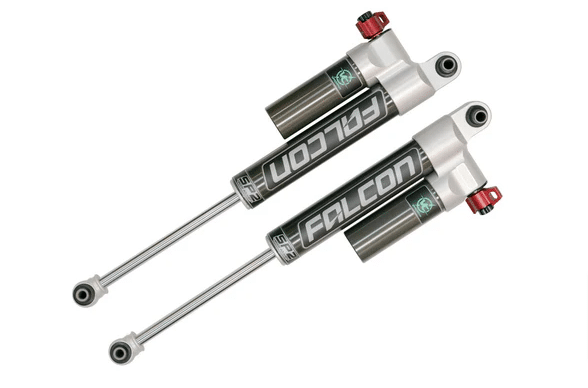

- Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)

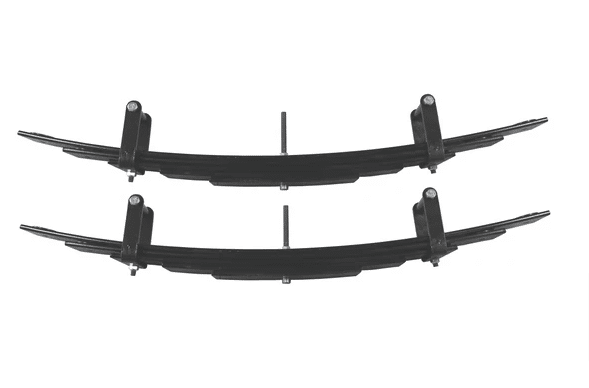

- Rear 5-Leaf Mini-Spring Pack and Bump Stop Spacers
- High Clearance Rear Shock Brackets
Intended Use:
- Ideal for users seeking adjustable ride quality
- Perfect for heavier vans prone to rear sagging
- Passenger vans looking for a versatile ride with a more aggressive stance
The Stage 4 Topo 2.0 package is designed to significantly enhance the ride quality and stance of your Ford Transit AWD. This advanced suspension system has been specifically developed to address the unique packaging and front CV shaft challenges of the 2020+ AWD Transit platform.
Our Topo 2″ lift kit includes a precision-engineered 0.75″ lift camber correction plate and a custom-tuned coil spring. This allows for a 1.25″ lift with increased compression travel. The rear features a 5-leaf mini pack, working alongside the factory leaf springs to provide a 10-15% increase in spring rate, lifting the rear of the van between 2.0″ and 2.5″, depending on the vehicle’s weight. Friction-reducing tips on the leaf springs ensure a quiet and smooth ride. Rear shock relocation brackets are included, allowing you to trim the low-hanging factory brackets, which improves overall ground clearance under the axle tube.
The Falcon 3.3 Fast Adjust Shocks offer a wide range of compression adjustments, easily controlled via a large, accessible Fast Adjust knob. This system allows quick changes from soft to firm settings, offering a broader range of adjustment than smaller competitor adjusters. The larger range means these shocks are highly adaptable to various driving conditions.
(Please note: Bilstein B6 struts are not included with AWD systems, as their added length can lead to CV boot failure.)
FITMENT GUIDE Click Here for our Tire Fitment Guide
Click Here for Vancompass Transit Van Lift Kit Installation Instructions
Additional information
| Shock Tune | Light/ Mid – Under 8500 Lbs, Mid / Heavy – Over 8500 Lbs |
|---|
