Smittybilt XRC Gen3 12K Comp Winch – Synthetic Rope for your Conversion Van Overlander/Off-Roader
Faster. Stronger. Smarter Winches

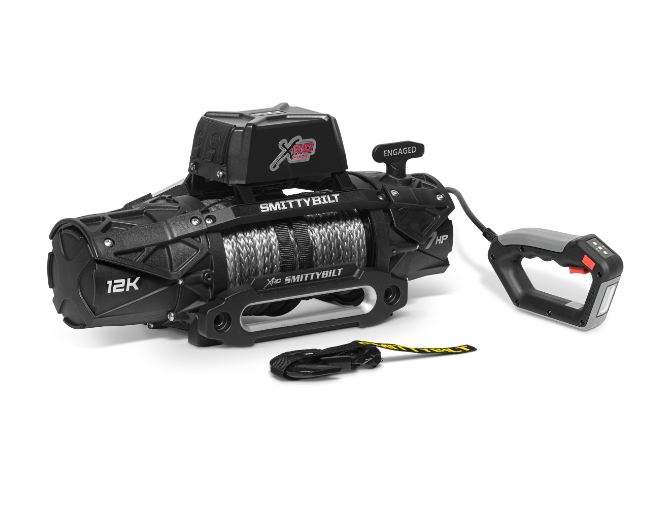

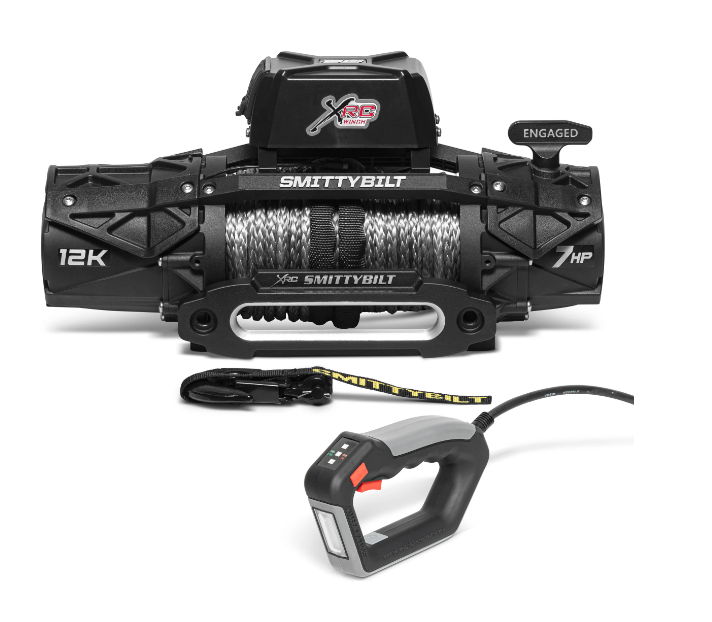

The Smittybilt XRC Gen3 12K Comp Winch is engineered from the ground up to deliver unmatched performance, durability, and ease of use. Powered by a robust 7.0 HP motor, this winch offers a 12% faster average line speed than its Gen2 predecessor—delivering more pulling power with less amp draw under load.

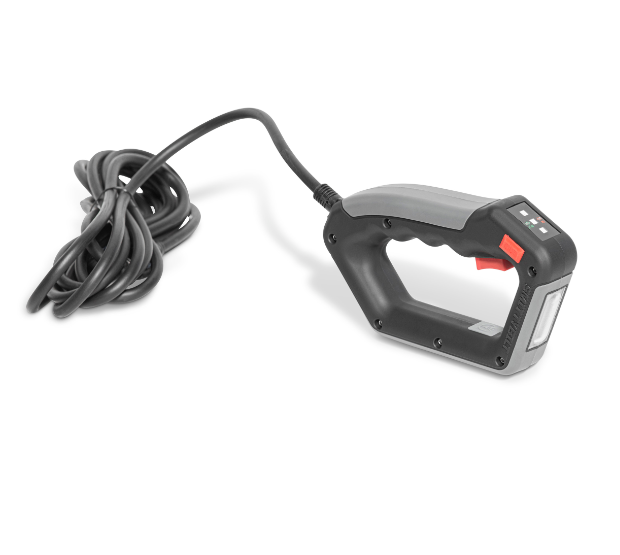

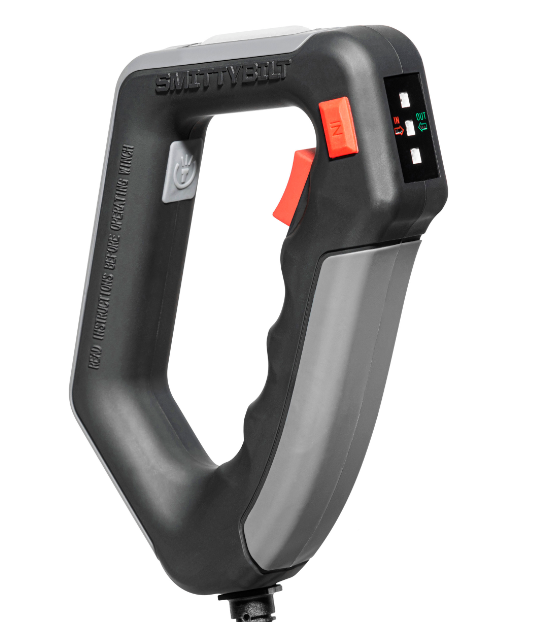

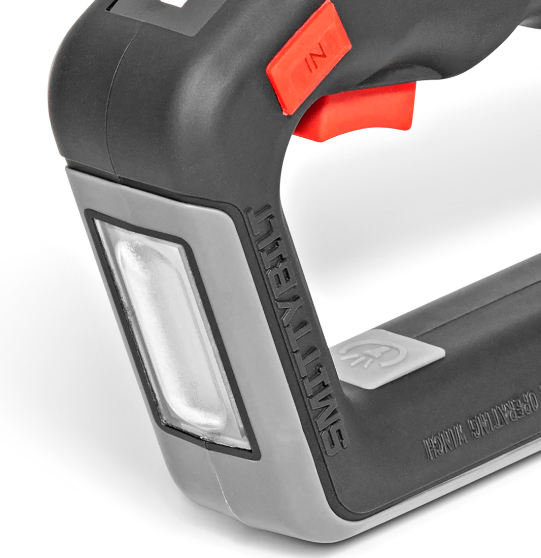

Designed with the user in mind, the ergonomic remote control features an integrated load indicator, giving you real-time feedback on your pull capacity. Need to work in low-light conditions? The remote also includes a built-in flashlight, while a 12V power post on the control box provides additional lighting options.

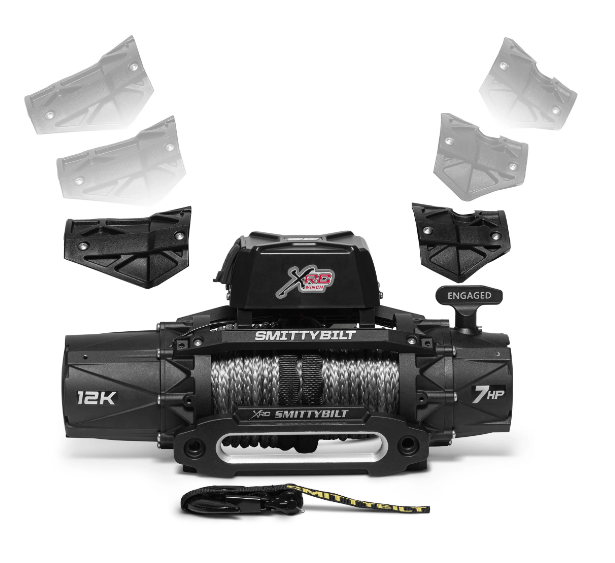

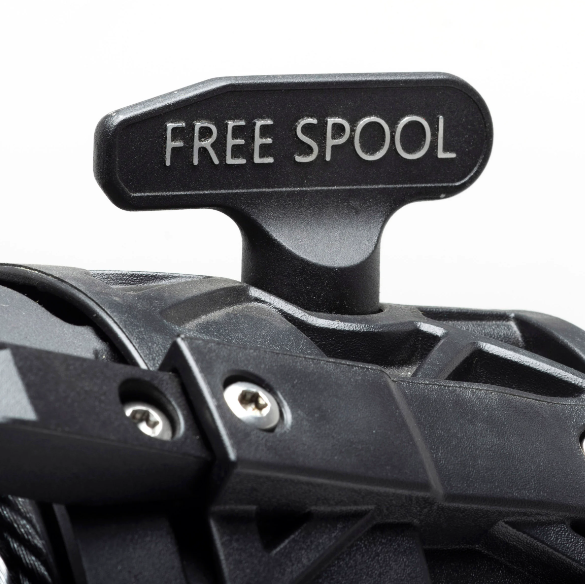

For quick access and storage, the remote includes dual magnetic mounts for secure placement on any metal surface. A high-visibility clutch lever with large, clear markings lets you instantly verify whether the winch is engaged or in free spool. Customize the appearance with removable body armor, allowing you to match the winch to your build.
The XRC Gen3 winch is available in 9,500 lb and 12,000 lb capacities, with the Comp Series featuring a synthetic rope and aluminum hawse fairlead for maximum performance and lightweight durability.
Backed by a lifetime mechanical warranty and a 5-year electrical warranty, this winch is supported by Smittybilt’s trusted customer service—giving you confidence on every recovery.
Key Specifications:
-
Rated Line Pull: 12,000 lbs
-
Rope Type: 95 ft Synthetic Cable
-
Winch Type: Electric
-
Motor: 7.0 HP Series Wound
-
Gear System: 3-Stage Planetary
-
Clutch Lever: High-Visibility, Easy-Read
-
Fairlead: Aluminum Hawse
-
IP Rating: IP67 Waterproof
-
Fitment: Universal (Not Vehicle-Specific)
Standout Features:
-
Faster line speeds—12% faster than Gen2 models
-
Low amp draw under load, improving battery efficiency
-
Innovative Load Indicator Warning System built into the remote
-
Remote includes integrated flashlight for nighttime operation
-
Dual magnetic mounts allow hands-free remote placement
-
12V power post on the control box for auxiliary lighting
-
Customizable body armor to match your vehicle’s style
Warranty:
-
Mechanical: Lifetime Warranty
-
Electrical: 5-Year Warranty
Dimensions & Shipping:
-
Product Size: 27″ L x 14″ W x 10″ H
-
Shipping Dimensions: 26.00″ x 14.00″ x 10.00″
-
Weight: 71 lbs
-
Dimensional Weight: 16 lbs
Warranty
Smittybilt offers extended warranties because we stand behind our products and want our customers to enjoy the freedom of off-roading without the worry and limits of fragile equipment. We understand the wear and tear these products will be subject to and our goal is to provide a comprehensive warranty to gives you confidence that the products you are outfitting your rig with will last for seasons to come. That’s the Smittybilt Advantage!
